M-Tech® Alignment Shims: Industrial-Grade Solutions, Standard and Custom Configured
M-Tech® alignment shims are precision-engineered components designed to achieve accurate assembly fits. Available in standard materials such as stainless steel, as well as lightweight non-standard options, our alignment shims deliver adjustment accuracy while reducing overall weight to fulfil your specific technical requirements and application needs.
Available in cases and refill packs.
For full specifications, download the product range PDFs: Standard Alignment Shims (PDF) | Non-Standard Alignment Shims (PDF) | Shim Kits (PDF) or submit an enquiry for tailored recommendations.
What Makes M-Tech® Alignment Shims Different?
- Multi-layer material structure that supports good handling and enhances accuracy during alignment tasks
- Value for money with refillable packages, cases, and custom-made alignment shims
- Special editions and custom branding tailored to fit your industrial needs
- A diverse range of precision alignment shims for high-performance industrial assembly
Choose the Right Alignment Shim for Your Application
Beyond the M-Tech® alignment products, we offer made-to-order shims ranging from 5 µm to 15 mm, including non-standard shims or even grinded assortments.
We can align it in all material types according to your requirements:
- Stainless steel
- High-strength aluminium
- PET (polyethene terephthalate)
- POM (polyoxymethylene)
M-Tech® Alignment Shim Variants

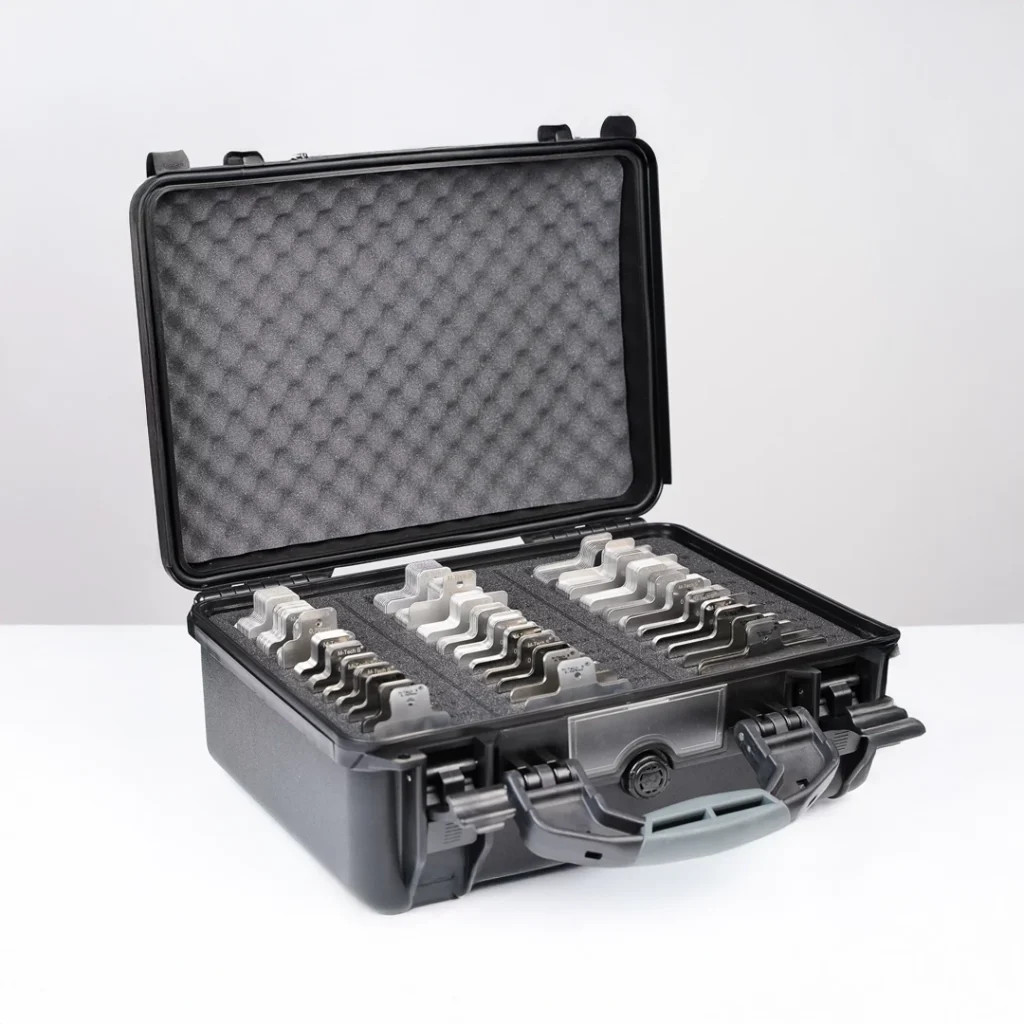

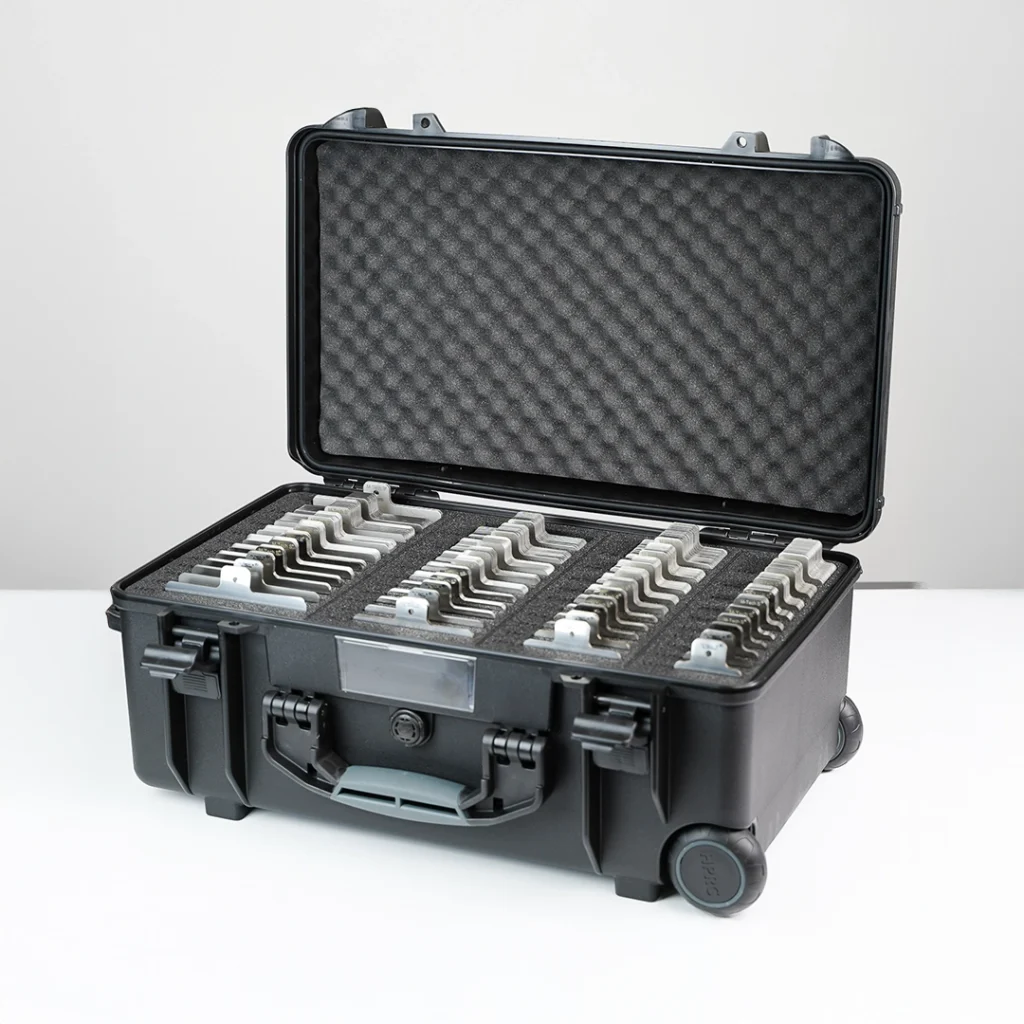

Standard Shim Kit
M-Tech®S solid alignment shims in stainless steel:
- Thicknesses from 0.025 to 2.0 mm
- 5 variations in 380, 400, 420, 570, and 780 pieces
- Available as standard equipment, individual cases, or bulk equipment requests
Non-Standard Shim Kit — Light
A lightweight non-standard alignment shim kit including:
- M-Tech®V edge-welded alignment shims in stainless steel
- M-Tech®L HP5 laminated alignment shims in PET, manually peelable
- M-Tech®S solid alignment shims in stainless steel and POM
- 2 variations in 120 pieces

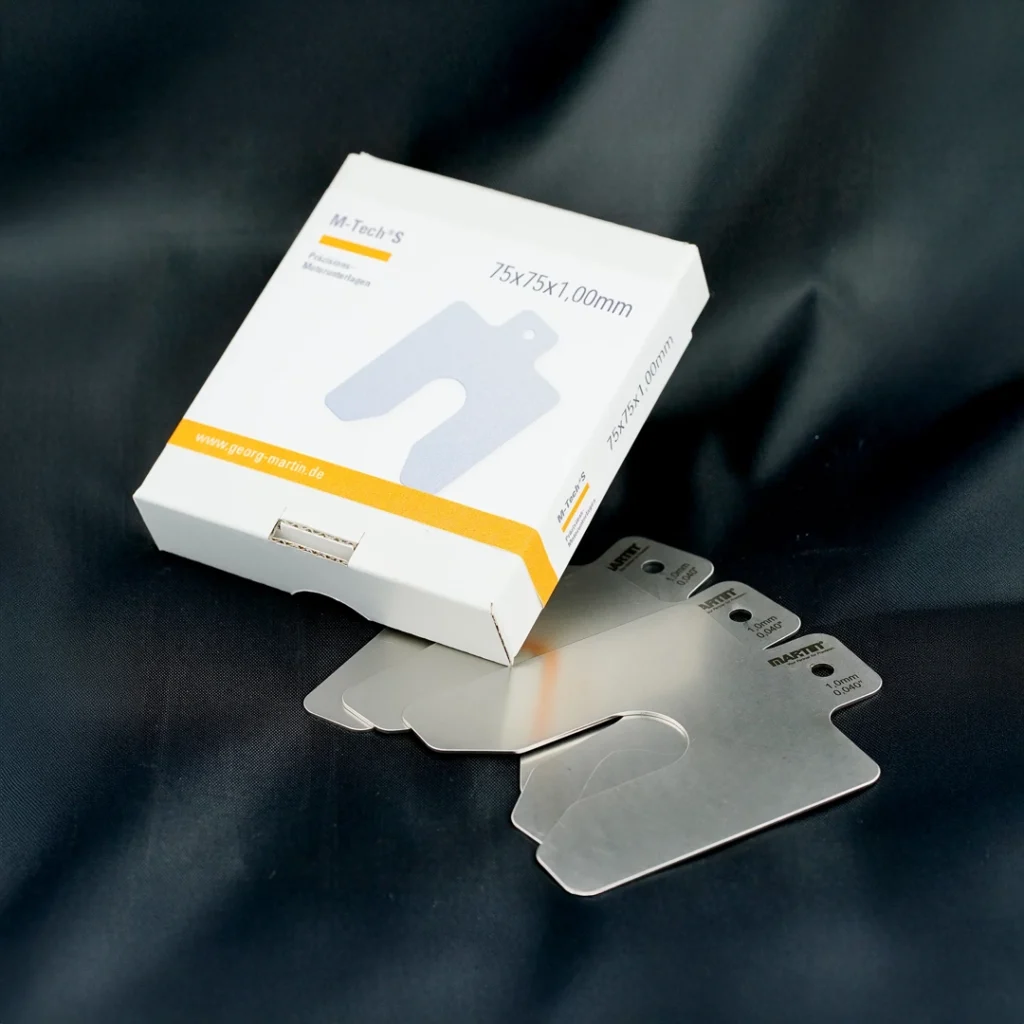

Refill packages
- 10-piece packages of alignment shims in mono-material
- All thicknesses from 0.025 to 3.0 mm in practical packaging
- Standard: alignment shims in stainless steel
- Non-standard: alignment shims in stainless steel, high-strength aluminium, PET, and POM

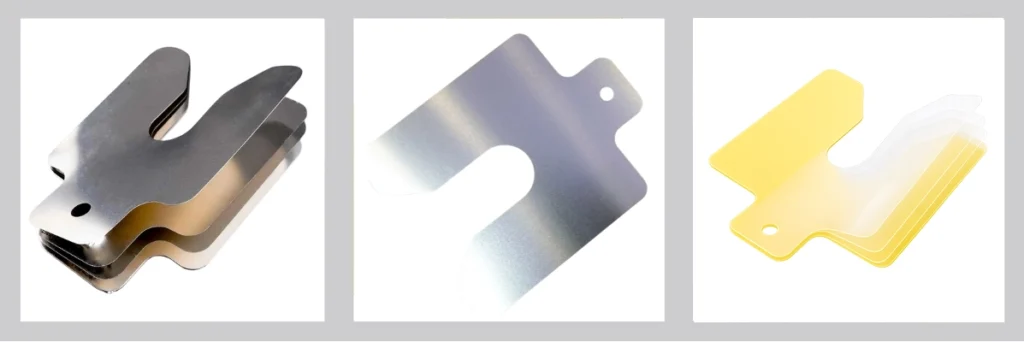

The Variants to Choose From:
M-Tech® Alignment Shims: Standard Solution

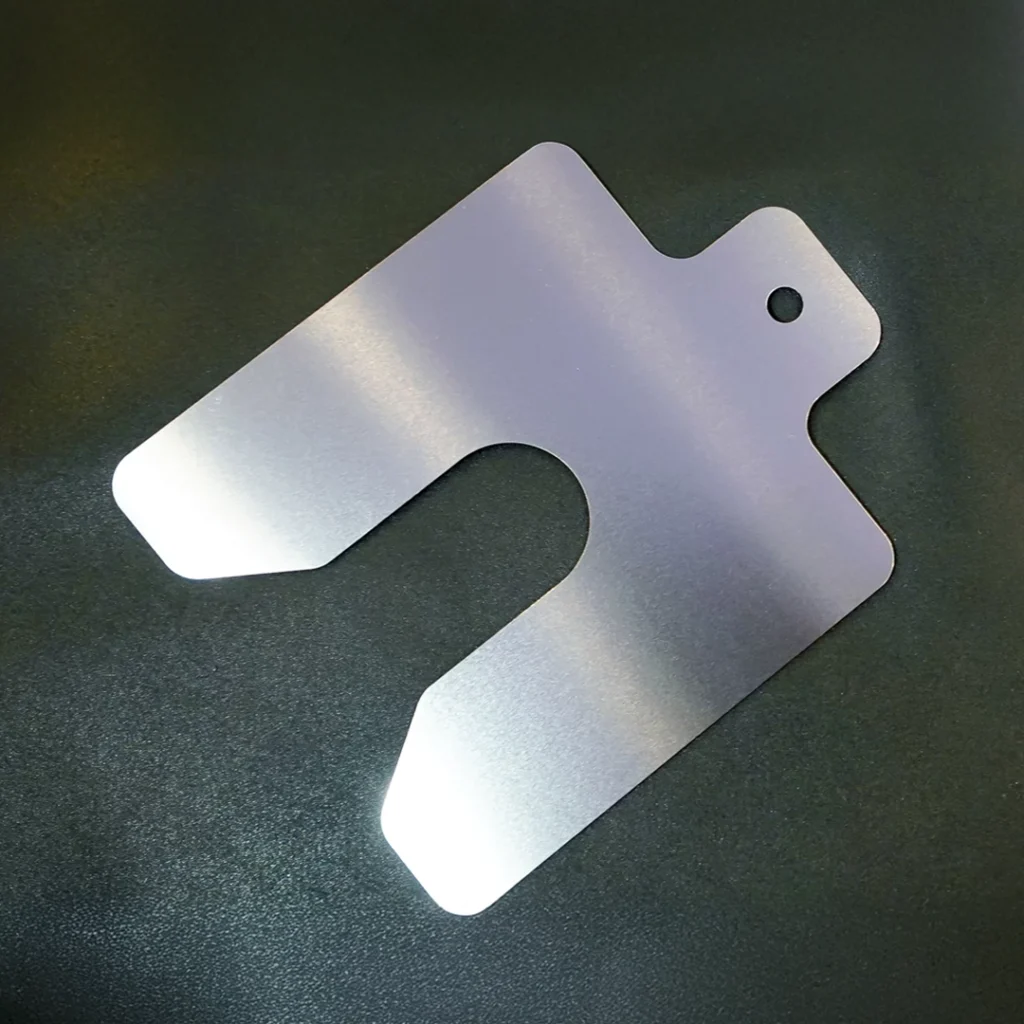

M-Tech®S Solid Alignment Shims in Stainless Steel Standard solid alignment shims. Thickness range 0.025 to 3.0 mm.
M-Tech® Alignment Shims: Non-Standard Solution

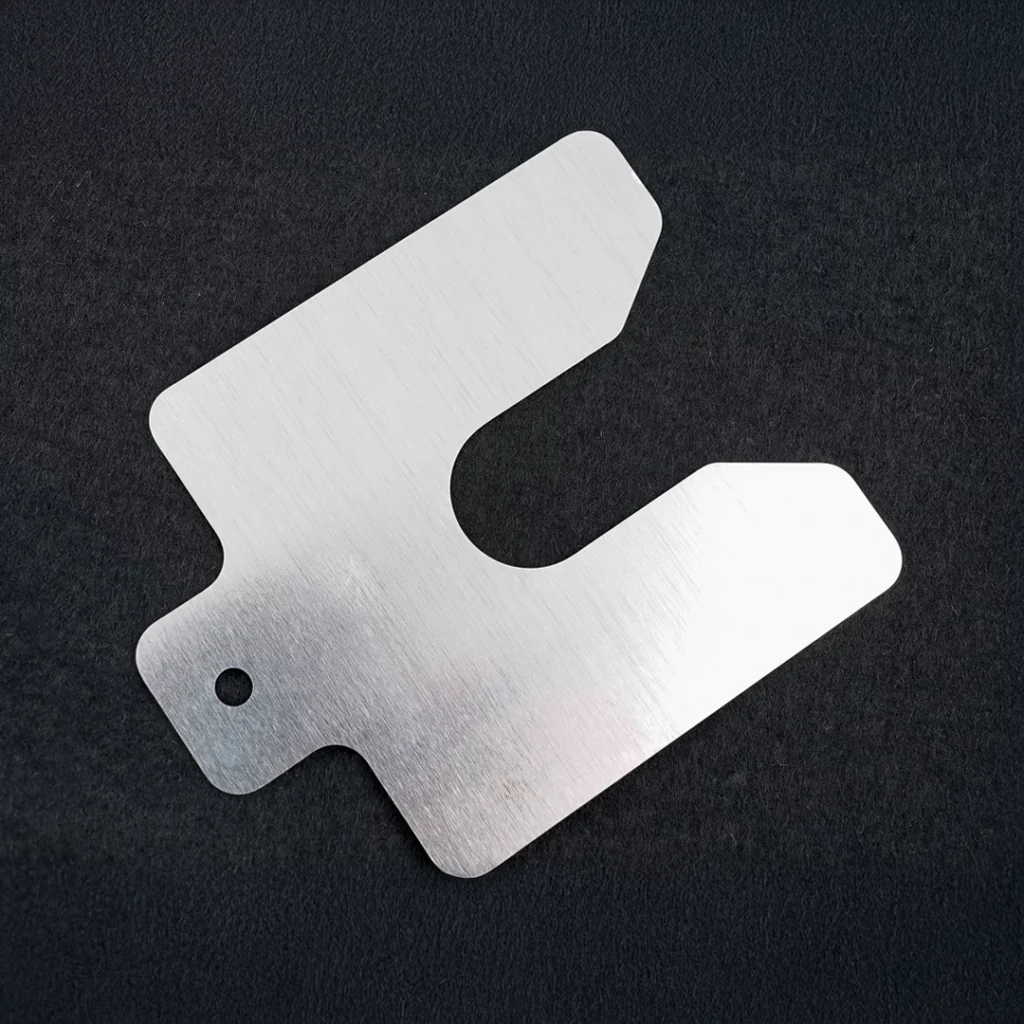

M-Tech®S Solid Alignment Shims in Aluminium Non-standard solid alignment shims in AlMg3.0. A lightweight option where weight reduction is a priority.

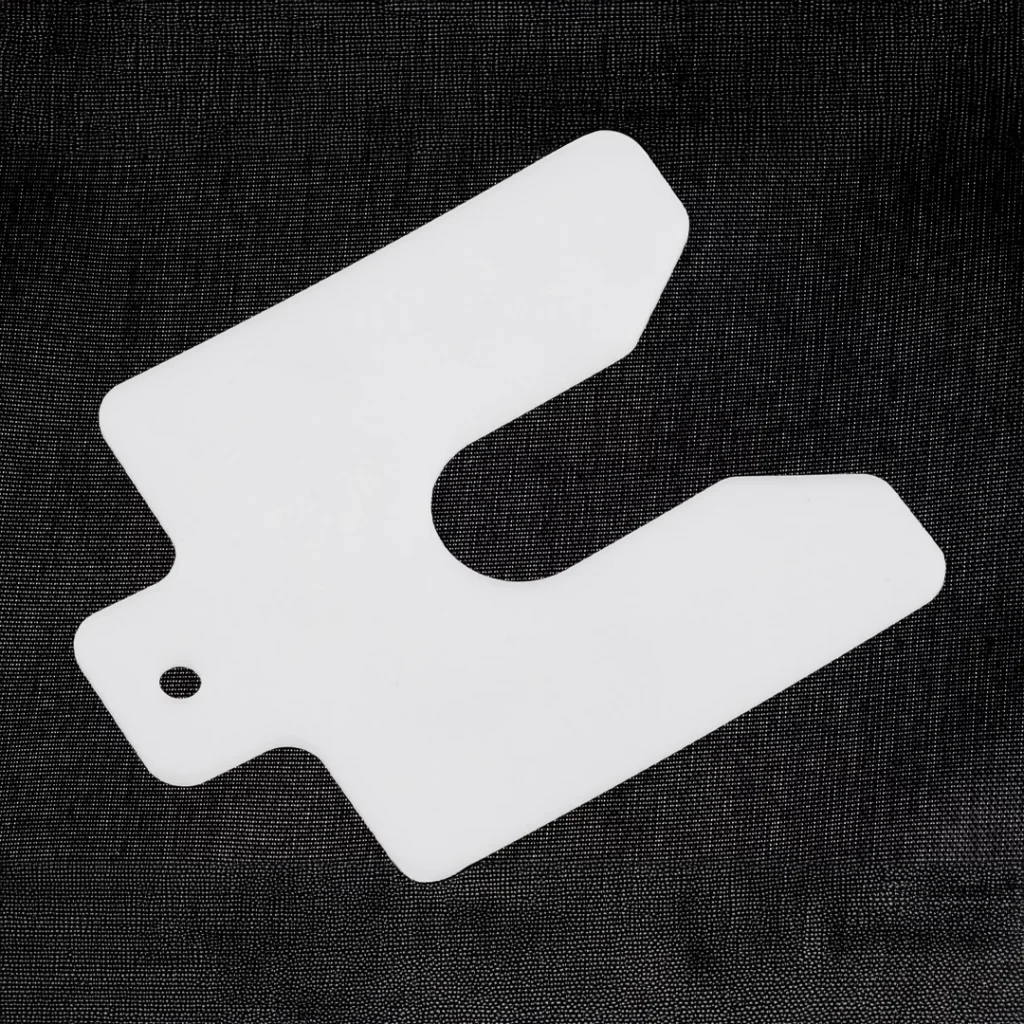

M-Tech®S Solid Alignment Shims in POM Non-standard solid alignment shims in POM for applications requiring non-metallic materials.

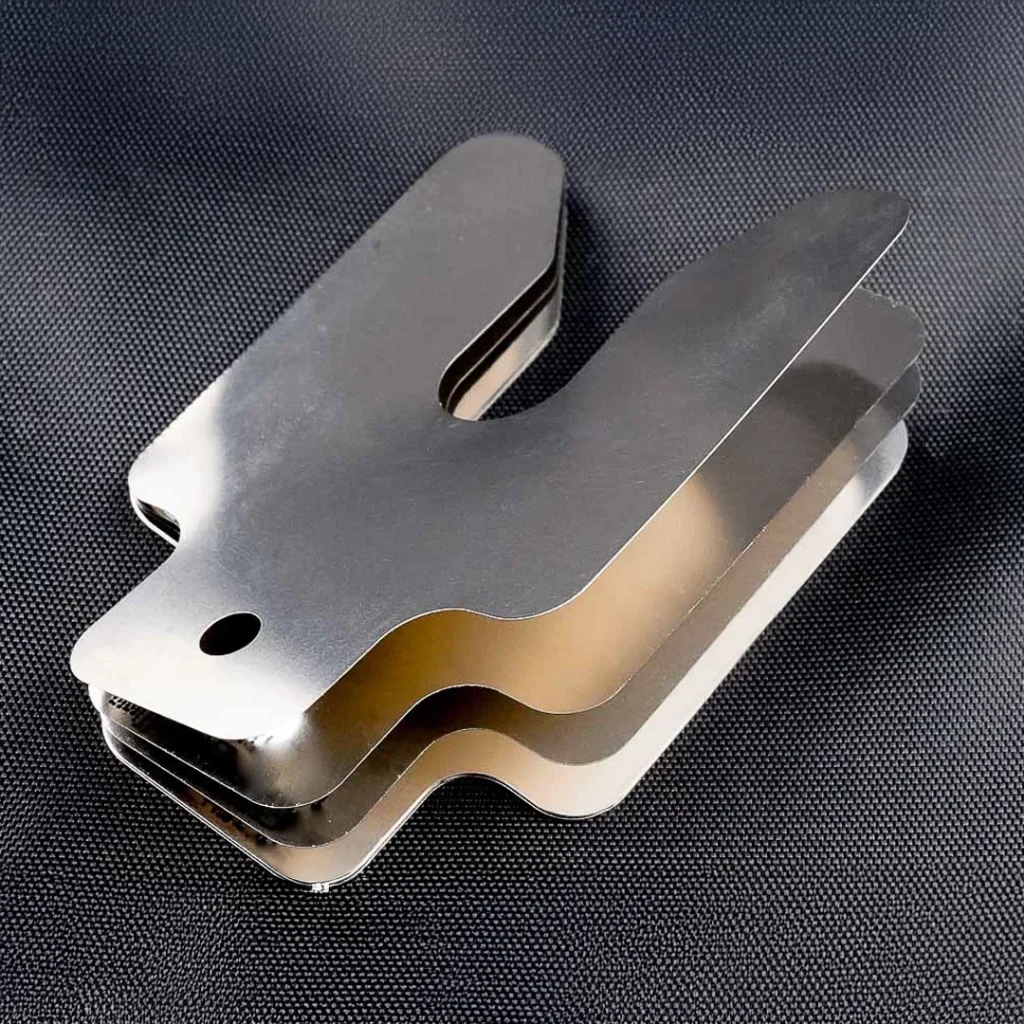

M-Tech®V Edge-Welded Alignment Shims in Stainless Steel AISI 304 Edge-welded, flat, reusable foils. Non-standard alignment shims with individual separable layers.

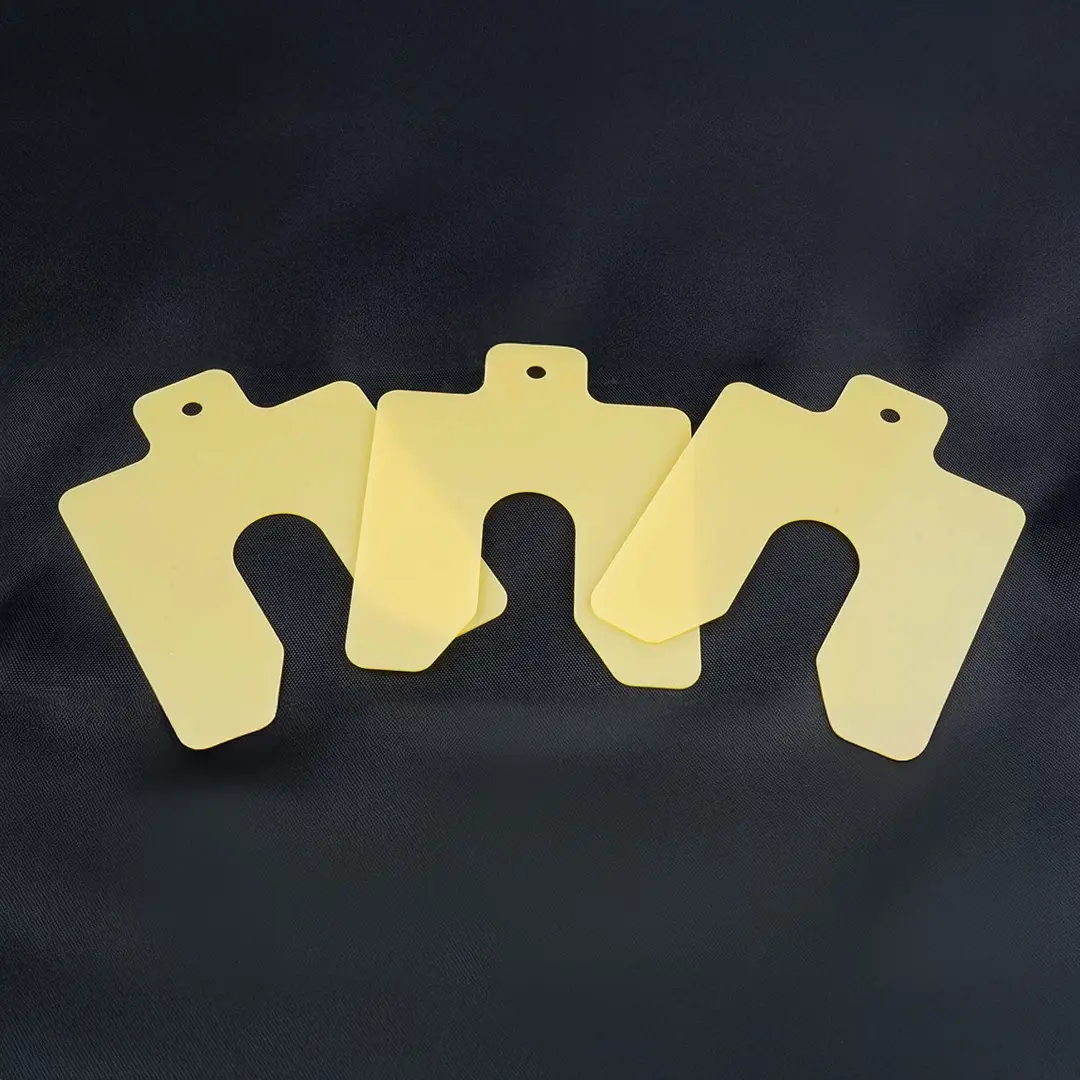

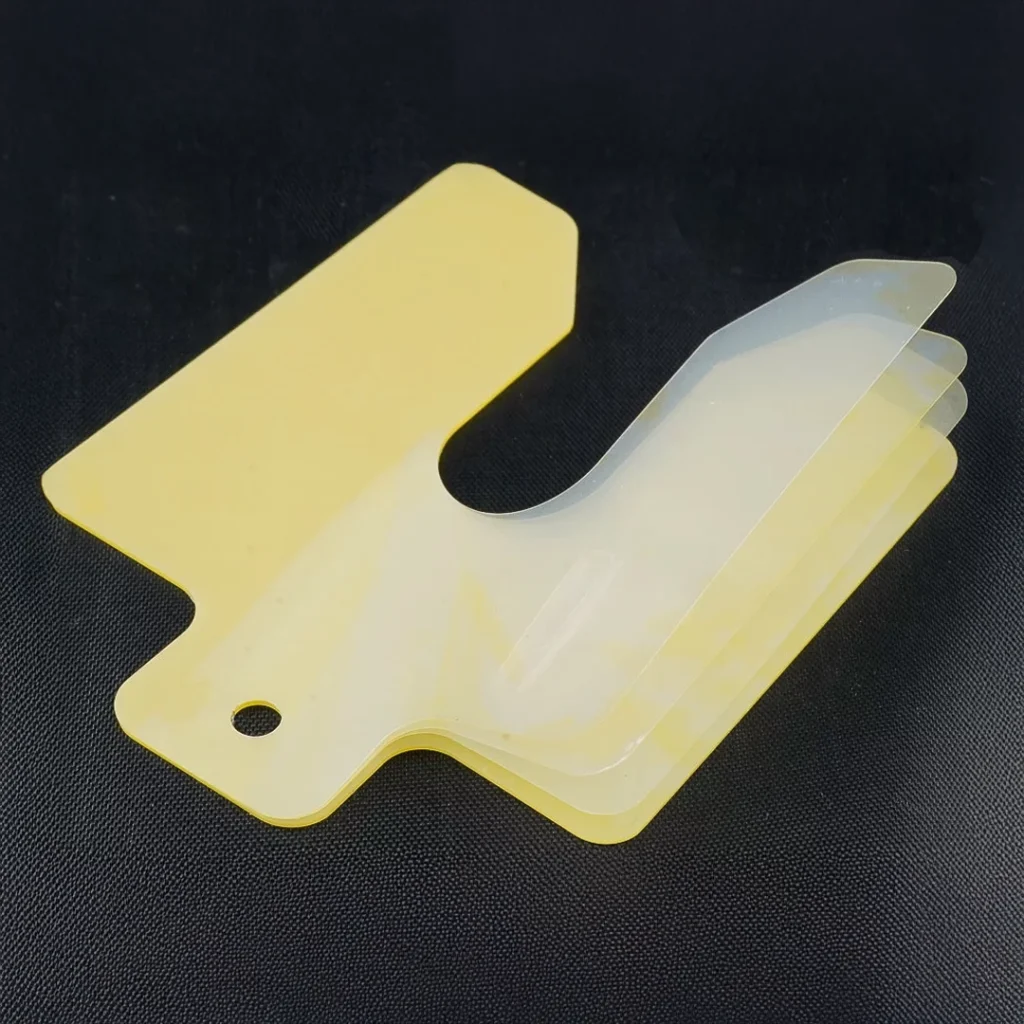

M-Tech®L HP5 Laminated Alignment Shims in PET Manually peelable laminated alignment shims in PET for lightweight applications.

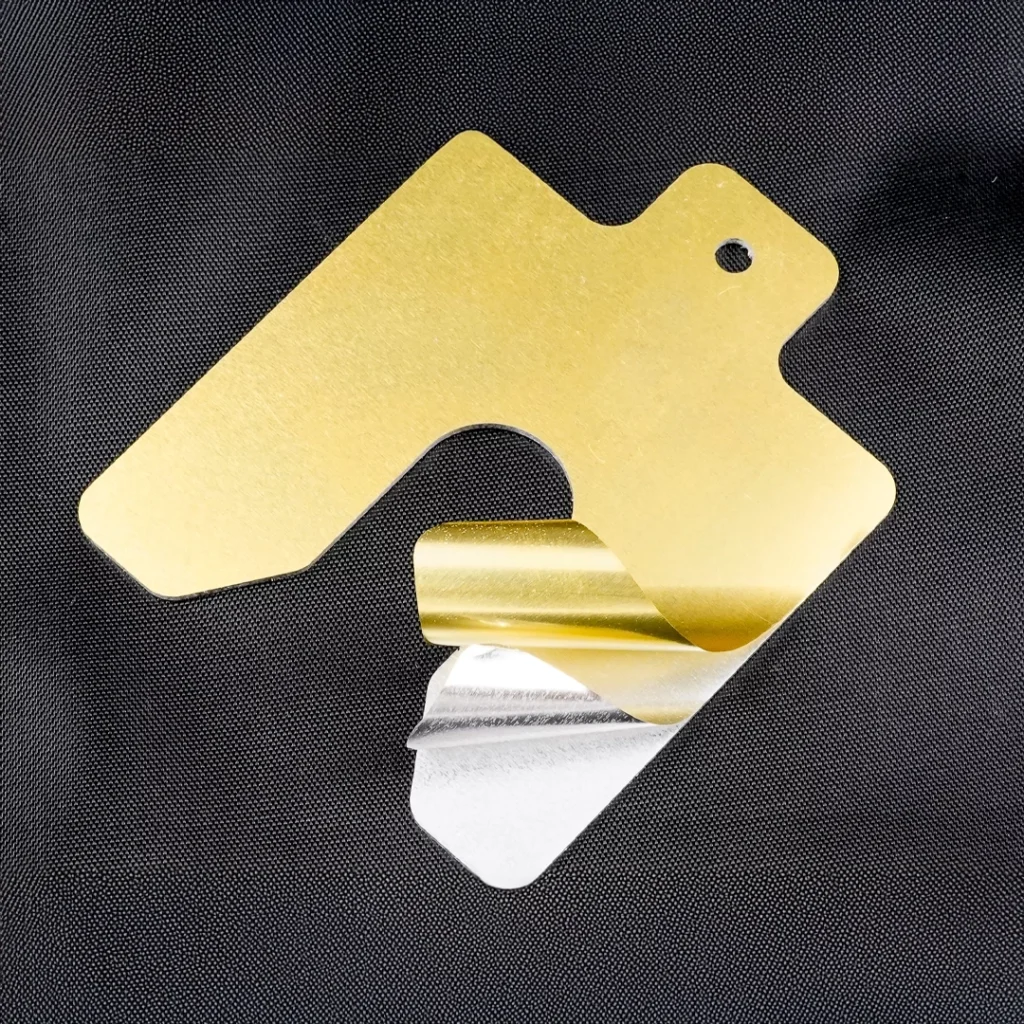

M-Tech®L HP3 High-Precision Laminated Alignment Shims High-precision laminated alignment shims. 2.9 times lighter than stainless steel.

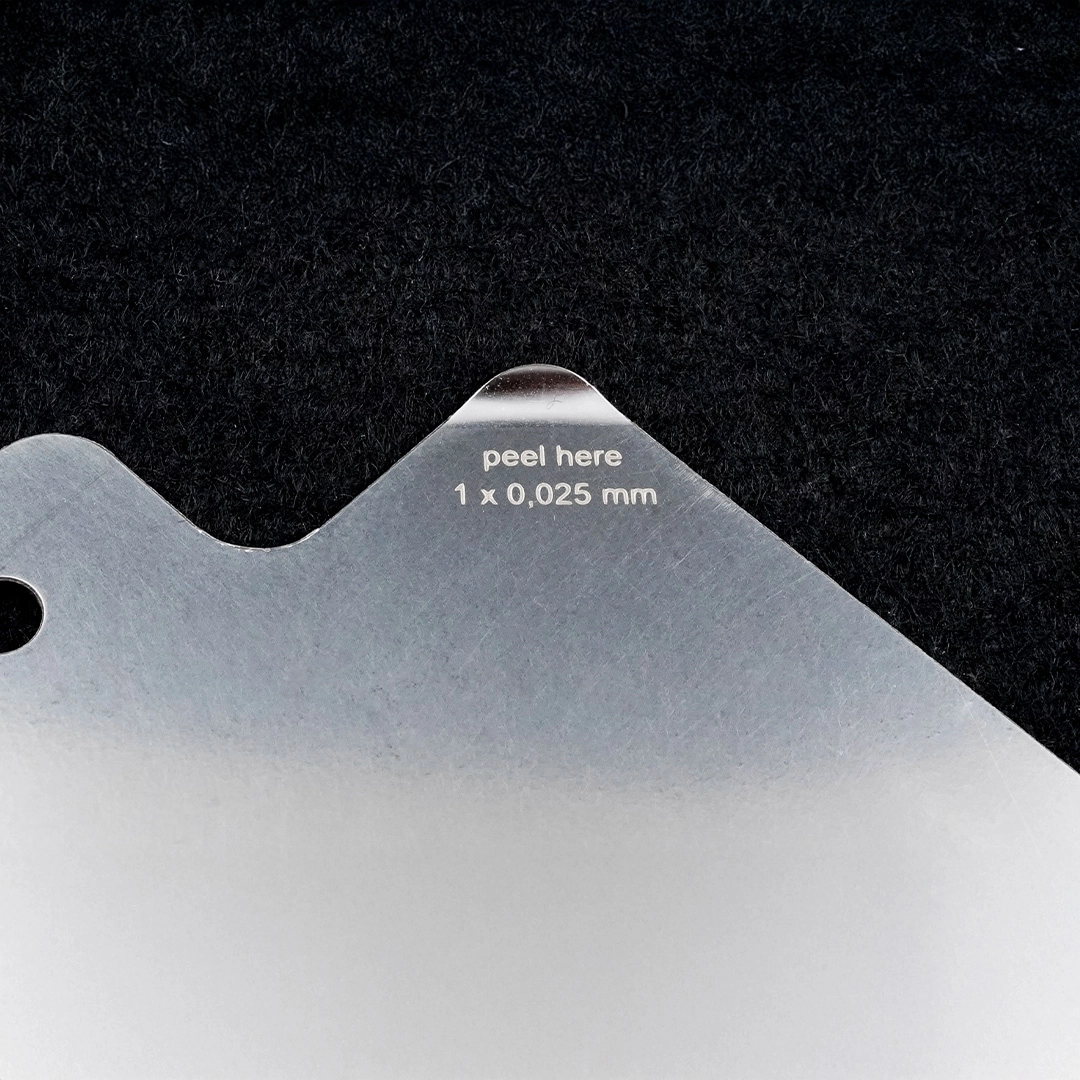

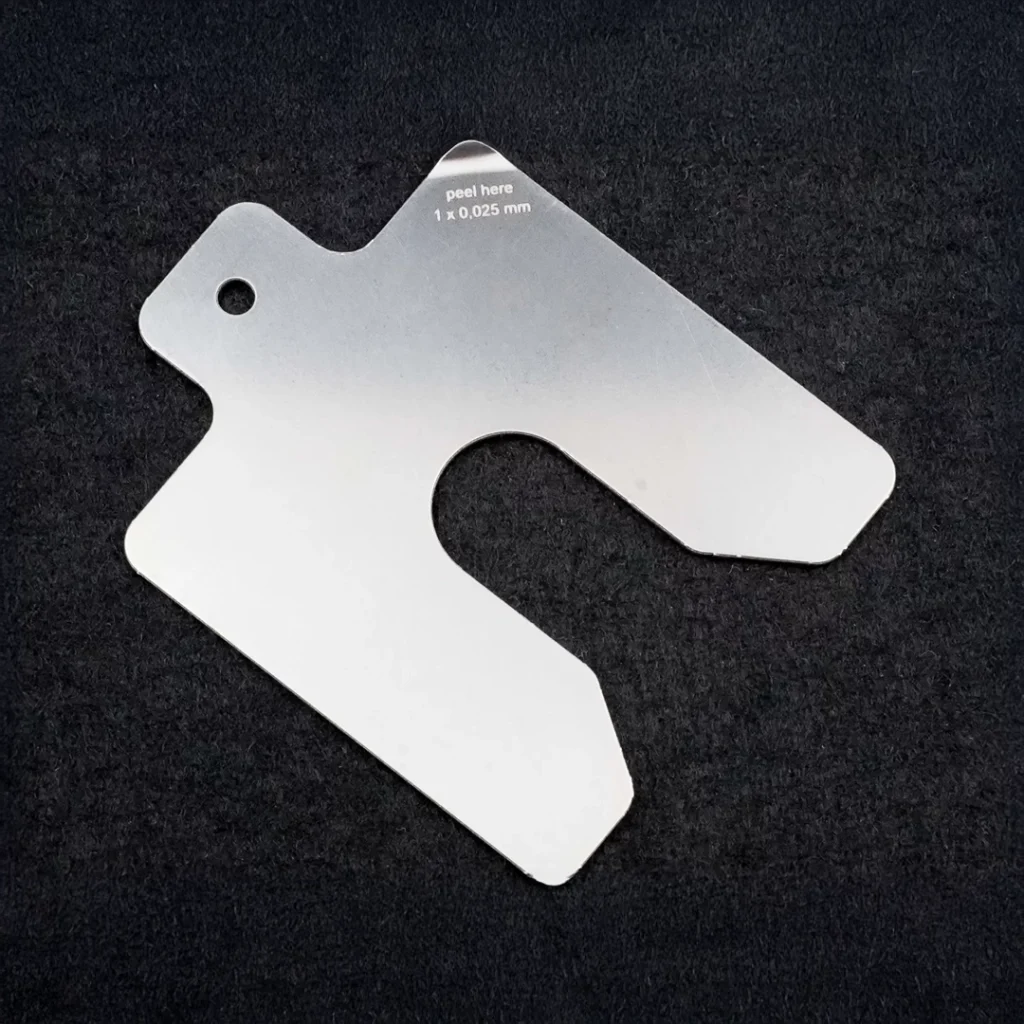

M-Tech®L HP1 High-Precision Laminated Alignment Shims in Stainless Steel AISI 304 High-precision laminated alignment shims in stainless steel for demanding industrial applications.
For detailed specifications for each product on the Standard and Non-Standard product list, view the document.
Precision Solutions. Proven Quality.
M-Tech® alignment shims offer standardised and innovative solutions for precise, efficient, and reliable alignment in industrial conditions, optimising your assembly and maintenance procedures.
Source your M-Tech® alignment shims from Georg Martin GmbH.
Contact Us
Overview of Shim Solution Products
We are a development partner, series and process consultant for built-to-print precision shims, sub-assemblies, components, and more.
Standard Solutions
Our portfolio includes a wide range of standardised M-Tech® solutions in addition to our customer-specific items:
Streamline Your Alignment with M-Tech® Precision Shims
M-Tech® alignment shims are precision-engineered for accurate levelling, alignment, and tolerance compensation in industrial assemblies. Explore standard and non-standard configurations, available in cases and refill packs with expert recommendations for your specific application.
For more information, download the product range PDFs: Standard Alignment Shims (PDF) | Non-Standard Alignment Shims (PDF) | Shim Kits (PDF)
Frequently Asked Questions About Laminum® Peelable Shims
What are alignment shims?
Alignment shims are flat precision spacers placed beneath motor feet, pump bases, machine frames, or mounting surfaces to correct height differences, achieve shaft alignment, and compensate for manufacturing tolerances. They eliminate the need for remachining and allow accurate on-site adjustments during assembly and maintenance. View the full Shim Solution product range.
What applications are M-Tech® alignment shims used in?
M-Tech® alignment shims are designed for motor and pump alignment during final assembly and maintenance, height compensation between coupled components, and tolerance adjustment in industrial machinery. They are especially well suited to plant engineering, mechanical drive systems, and general machinery where on-site adjustment without machining is required. Read more about shim applications across industries.
What materials are M-Tech® alignment shims available in?
M-Tech® alignment shims are available in stainless steel, high-strength aluminium (AlMg3.0), PET (polyethylene terephthalate), and POM (polyoxymethylene). The material choice depends on load requirements, weight constraints, and the specific application environment.
What is the thickness range for M-Tech® alignment shims?
Standard M-Tech®S solid alignment shims in stainless steel are available from 0.025 mm to 2.0 mm. Refill packs cover all thicknesses from 0.025 mm to 3.0 mm. Made-to-order alignment shims are available from 5 µm to 15 mm, including ground assortments.
What is the difference between the standard and non-standard alignment shim kits?
The standard shim kit contains M-Tech®S solid alignment shims in stainless steel, available in 5 size variations from 380 to 780 pieces. The non-standard shim kit is a lighter option that combines M-Tech®V edge-welded shims, M-Tech®L HP5 laminated PET shims, and M-Tech®S solid shims in stainless steel and POM, available in 2 variations of 120 pieces. Both are available in cases and refill packs.
What are M-Tech®V edge-welded alignment shims?
M-Tech®V edge-welded alignment shims are flat, reusable shim foils in stainless steel AISI 304 with individual separable layers. They are part of the non-standard alignment shim range and are suitable for applications where layer-by-layer adjustment and reusability are a priority. They are closely related to the Lamivario® edge-connected shim product family.
Can alignment shims be custom branded or made to special editions?
Yes. Shim Solution offers special editions and custom branding for M-Tech® alignment shims tailored to specific industrial requirements. This includes bespoke packaging, labelling, and product configurations for OEMs and industrial distributors. Contact Shim Solution to discuss your requirements.
Where can I download the full M-Tech® alignment shim specifications?
Send your drawings in DXF, PDF, CAD, or STP format to Shim Solution. The team will review your requirements, prepare the laminated shims to specification, and provide a personalised quotation.
